PTW 23.000 PROFI LINE
used Wienhoff slurry tanker
Slurry tanker type 23.000 T PTW Profi Line
damaged. FV
Slurry tanker with interior coating and
outside painting
7m cylinder
6mm wall thickness
2.00m tank Ø
3
"welded
baffle plates"
in the tank and manhole cover parallel to the
suction/ flushing 1 double-acting NG 06
Docking arm joint 1 double-acting NG 06
Docking arm 2nd joint 1x double-acting NG 06
Docking arm aeration 1 5/2 way e-pneum
Turbine Docking arm 1x single-acting NG 10
Tank ventilation 1x single-acting NG 06
2 chamber system 1x single-acting NG 06
RotoCut 1x double-acting NG 10
Forced steering 3- Flow control valve
CFC 30/27/24/21
LikeTaCon Pro Screen Touch 12 - 7.790,00
rear cover
Basic function
Suction and discharge Start/stop
Fill level preselection via rotary potentiometer
Automatic limit switch-off with post-suction
Distributor high/low switchover
Left/right distributor changeover
Display lock during road travel
Diagnostic menu for inputs/outputs
Timer menu for autom. sequences
Counter for operating hours &
Tank with liquid displacement
Further
Drum counter
Speed detection on the axis
Dimmable display & button illumination
USB interface
Emergency stop switch
ISO bus: AUX/ N variant
For assigning the ISO bus-capable
buttons and joysticks
on the tractor
for
2 Additional control box suction / rinsing /
Rotacut L&R
Suction / Rinsing
RotoCut: left / right
Position: bottom left and right
Additional 001.09.0002_Cable bracket Cable
guide
Automatic switchover: from "Vacuuming" to
"rinsing"
Support load optimization
when the drum is full. Sensor on the
float indicator
5m 6" PVC suction hose
Lifting gear preparation model 2018
Consisting of
207660_attachment frame
Mechanical preparation
Electrical preparation incl
Bracket for
additional control box
Color: RAL shade of your choice
Wienhoff Variohub comfort model 2018
with three-point linkage
Movable lower links in
working position
Heavy-duty stabilizers
Lower link 730mm
double-acting
single-acting and floating function
in the
comfort control
and WieTaCon 12 adjustable
Lowering lock of the linkage through
safety valve
turnbuckles possible
Painted black at no extra charge
Rosho camera
Display on CAN-BUS terminal
with magnetic base
magnetic base
Wienhoff - Central lubrication system for
tandem slurry tanker
Wienhoff LevelTuner for tandem
automatic adjustment of the air suspension pressure
Ride Stability Program (RSP)
ABS system
Simple tank aeration and ventilation
Support load sensor
We assume that the tractor is equipped
equipped with a suitable air dryer
is equipped
Support pockets for Vogelsang
is equipped
Support pockets for Vogelsang
Booms
Top link points for Vogelsang
Rear LED work lights
routed through the tank with verz.6" tube
1x at the rear on the left side of the tank
1x at the rear on the right side of the tank

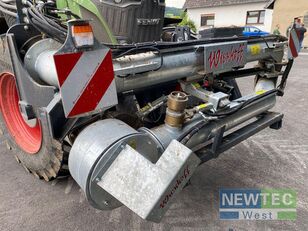

Front suction arm type "Free Sight"
Hydraulic folding
Attachment in 3-point front hydraulics
Integrated Wienhoff filling turbine
Nitrogen accumulator to absorb vibrations
vibrations
incl. 1x work light
4" ventilation
Second tank aeration and ventilation at the rear
Control via
Control units of the tractor
WieTaCon (in conjunction with a
Wienhoff tanker)
Free Sight attachment
Tandem tire pressure control system
30m Vogelsang towing hose Gest
Part width right/left hydraulic 2 towing guides
30/27/24/21m
Barrel color Fendt Nature Green
for FV (only with
Rim color black
Jackets Wienhoff 1 XL
2 XXL
Can-Bus)
Level indicator Float diameter
220 mm front
in tank for Can-Bus
8" suction nozzle red. to 6" with hydraulic
gate valve and
front left
6" mechanical slide valve with direct 610,00
from the tank
for suction
Position: any
6" hydraulic rear gate valve with M-piece
(preparation for baffle plate/
wide distributor)
mechanical
electric
hydraulic
14 to. Gigant air suspension
tandem
cable forced steering
150 BPW axles
track. 2225mm
RDR
Front end
AgroTurn
Low center of gravity: axles above the
springs
wheel arches above both axles
Effective volume: approx. 21,800 liters
389+
Hydro-pneum. suspended bottom hitch
1900
K80 with
hydraulic support leg
K80 with large flange 4 to
2-circuit air brake with ALB
40 km/h equipment
with
single wheel cover
Plastic SA single wheel cover
40 km/h TÜV certificate
Warning signs and marker lights
Underride guard with truck lighting
Lighting completely in LED
Via WieTaCon / other switches
Vogelsang RotoCut M 10.000
Cutting device w. automatic adjustment
adjustment (agreement with M.Vehring)
mounted on large stone catcher box
Vogelsang rotary lobe pump VX 186/390Q
9000 L/min
Injection system with hydrostat
hydraulically controlled rotary lobe pump over
1000 rpm
gearbox
hydrostatic pump
Controlled oil cooler incl. oil cooler cover on both sides
001.08.0070_Abdeckung Oelkühler
Oil tank 80 liters
PTO Bondioli Pavesi BG9
(surcharge for the 9m mechanical DP)
PTO shaft Bondioli Pavesi size 9
with 10mm
shear bolt and wide angle for
large pumps
Pressure side monitoring unit
Pressure gauge on the pressure side with
diaphragm gauge
Suction side monitoring unit
Vacuum pressure gauge on the suction side
with diaphragm gauge
With 8" control flap on the
pump suction side
Drain cocks on the pump suction and discharge side
discharge side
Input plate (basic circuit)
via the tractor LS hydraulic system
Pressure filter in front of the control block!
Fold out/fold in boom 1 double-acting NG 06
Dropstop linkage 1 double-acting NG 06
Boom distributor 1 single-acting NG 10
fill/release 1 double-acting NG 06
